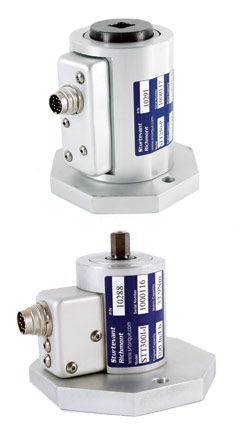

STT-P Series Torque Transducers

Applications

STT-P Series Torque Transducers are designed to work with both System 4 and System 5 Digital Torque Testers.

Features and Characteristics

• Hex mounting flange style.
• Can be mounted to ML 250 and ML 600 mechanical loaders
• All up to 250 ft. lbs. capacity can be mounted to Quad Plate for multi-transducer mounting on the ML 250.
• Smaller sizes (up to 300 in. lb. capacity) can be mounted to SSMB, STMB or UMB brackets for use with a bench or table.
• Larger sizes can be mounted on UMB L-bracket.
• Requires detachable cable (P/N 10293) for attachment to Switch Box or directly to tester.



Part Number and Ordering Information

Part No.	Model	Description
10286	STT-P50I	STT-P Series Torque Transducer, 50 in. lb. capacity
0287	STT-P100I	STT-P Series Torque Transducer, 100 in. lb. capacity
10288	STT-P300I	STT-P Series Torque Transducer, 300 in. lb. capacity
0290	STT-P150	STT-P Series Torque Transducer, 150 ft. lb. capacity
10291	STT-P250	STT-P Series Torque Transducer, 250 ft. lb. capacity
0293	Cable	Cable, STT-Series, 6 foot length

Additional Technical Information

		Torque Range
Part No.	Model	in.lbs.	ft.lbs.	Nm	kgf*cm	Hex
10286	STT-P50I	5-50		.56-5.6	6-60	0.25” Male
0287	STT-P100I	0 - 100		.2-12	1.5-115	0.375” Male
10288	STT-P300I	25 - 250	1.6 - 15.6	3.4 - 34	1.8 - 18	0.375” Male

Part No.	Model	in.lbs.	ft.lbs.	Nm	kgf*cm	Square Dr.
10290	STT-P150	180-1800	15 - 150	20-200	210-2100	.5”
0291	STT-P250	300-3000	25-250	34-340	350-3500	.75”
