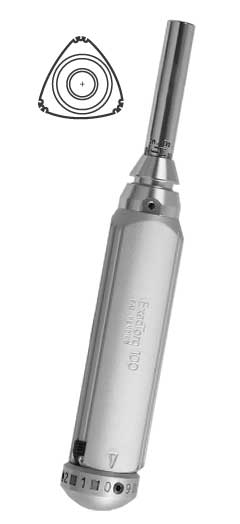

ExacTorq® Adjustable Torque Screwdriver
Applications
The S/R ExacTorq® Adjustable Torque Screwdriver is ideal for any application where:
- Low torque (20 - 100 inch-ounces or 14 - 74 cNm) is needed.
- Single-digit torque incrementation is needed.
- Superior ergonomics are needed.
These needs are common in high-precision operations such as electronics and electro-mechanical repair.
Features and Characteristics
- Bi-directional Accuracy of +/- 6% Indicated Value from 20% to 100% of capacity meets or exceeds ASME B107.300-2010 and ISO 6789.
- Unique tri-lobular grip design for enhanced comfort and handling translates into improved operator technique and lower risk of repetitive motion injury.
- Operator cannot overtorque. Clutch releases automatically when desired torque has been achieved.
- Torque adjusts in single-digit increments using DigiLock Control Mechanism.
- Extremely light weight.
- Uses standard bits, adapters and sockets.
- Anti-backlash design enhances repeatability.
- FREE NIST-traceable tabulated certification from our ISO/IEC 17025 Accredited Calibration Laboratory included.
Part Number and Ordering Information
| Part No. | Model | Range | Graduation | Length | Weight | Drive |
|---|---|---|---|---|---|---|
| 810045 | ExacTorq 100 | 20-100 in. ozs. | 1 in. oz. | 6.8 in. | 0.4 lbs. | 1/4” F Hex |
| 810046 | ExacTorq 74 | 15-74 cNm | 1 cNm | 6.8 in. | 0.4 lbs. | 1/4” F Hex |
