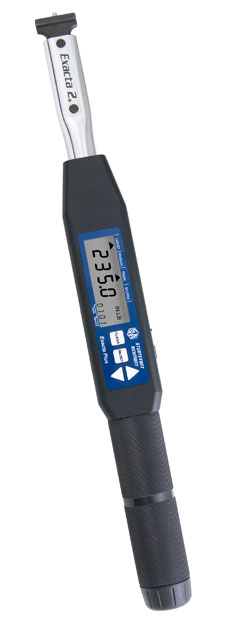

3000-Series Exacta® 2 Digital Torque Wrench

Applications & Characteristics

The 3000-Series is the upgrade replacement for the Exacta Plus Digital Torque Wrench - and quite an upgrade it is! These tools are ideal for remote assembly operations, those where the assembly is of sufficient size that the tool must go to the assembly instead of the assembly coming to the tool, as on most assembly lines.

The 3000-Series system incorporates a specially-designed Exacta® 2 digital torque wrench that communicates with and is controlled by proprietary software. The data export capabilities of the system facilitate integration with your plant’s quality software. This eliminates inefficiencies associated with information and data handling, and allows you to focus on joint quality!

The software manages three databases.

• The Task database holds information pertinent to each single task, such as: unit of measure, min torque, max torque, number of fasteners, mode of operation and related specifications.
• The Tools database contains information on the 3000-Series Exacta® 2 wrenches you have, such as capacity and serial number of each.
• The Users database contains the data on your operators, such as employee number, name, and what operations they are permitted to perform with the software and tool.

These databases are combined to create Job Templates. Job templates are commonly-used or recuring combinations of tasks, tools and users, and permit rapid job creation for all future uses of each template.

To create a job, you simply open a window, select the tool from the Tools Database and the appropriate Job Template. Enter the information pertinent to what is to be worked on and the work order number to be used. Save it and you are done. Now it’s in a list that the operator will use when beginning the work order!

The operator then logs in, selects the work order from the list, prints the Job Card that contains all of the information, downloads the matching information to the tool (1 Button!), logs out and goes to work!

Visual Support at Each Step

Each job is a series of sequential tasks to be performed with the wrench; torque three nuts here, four there, two on the other place and so forth. This information is on the Job Card that was printed at download.

The tool display augments and supports this at every step!

At the start of the job, the lower right-hand corner of the display shows the operator he is at “Task 01 Nut 01”. The main part of the display shows the target torque (mid-spec value), the unit of measure and the mode of operation.

As the operator begins applying torque to the first fastener, the display changes to provide current information on the status of the torque application. The current torque shows as it is applied, and when the operator gets close to the torque specification, an LED emits a bright yellow-orange light that backlights the display and appears in a prominent lens on the back of the wrench. Warning - you’re getting close!

When the torque specification is achieved, the light turrns bright green. All the operator needs to do is stop applying force - “Green is Good!”

The tool displays the torque for a couple of seconds longer in case the operator wishes to review it, then stores the value and indexes to the next fastener - “Task 01 Nut 02”!

This Inform/Record/Index cycle repeats until all of the fasteners in the first task are complete. The operator can then move to “Task 02 Nut 01”. There is never a question about what is to be done or where the operator is in the job - the current status is in hand and on display!

When all of the individual tasks in the work order are complete, the data is uploaded to the computer. The operator plugs the serial cable into the tool, logs on to the software, clicks on one button (Finish a Job) and at the screen that follows, uses one more button to upload the data. The software stores the data and can clear the tool memory so it’s ready for the next job.

At every step the operator has been guided through the tasks with the information immediately needed!

• Audible Prompts - Supplementing the visual information are audible prompts from a beeper.
• User-Friendly Job Data Management - The data on every fastener torqued by every tool and every operator on every assembly is in the database. Preformatted reports can be viewed or printed for every completed job, or the data can be exported for analysis and reporting by spreadsheets or quality software. Since the data is in the database these functions can be performed immediately upon upload from the tool or reserved for later, as best fits your needs.
• Three Modes of Operation: Track, Peak and Residual - Assembly and auditing are both accommodated with these three modes! The residual mode improves torque audit consistency for most hard and many medium joints.
• Extremely Accurate -The 3000-Series Exacta® 2 is accurate to +/- 1% of Indicated Value from 20% to 100% of rated capacity in Track and Peak modes. The Residual mode assists the user in determining retained torque on a joint. The actual accuracy percentage is contingent upon joint condition and user technique.
• Multiple Units of Measure - English and Standard International units of measure are on each tool. The exact units vary by tool capacity.
• The 3000-Series Exacta® 2 Uses the S/R Interchangeable Head System - The S/R line of Interchangeable Heads provides exceptional strength and rigidity of connection through our unique dovetail connection. Virtually all of these heads are made from a single piece of alloy steel, which assures durability and strength. With over 100 heads of 1 7/16” Common Centerline Length to choose from, the versatility of your 3000-Series Exacta® 2 is greatly multiplied! Note: 250 and 600 foot-pound capacity tools use the S/R slide pin ratchet.
• Extended Battery Life - The 3000-Series Exacta® 2 uses four (4) AA NiMH batteries of 2200 mAh capacity. These batteries (sold separately with 15-minute charger in NAFTA countries only) provide ample operating time between charges. Backup batteries (NAFTA countries only) are available with 2500 mAh capacity.

Ordering Information

Part No.	Model	Description
10550	3000-Series Exacta 25	25 ft.lb, 33.8 Nm cap., 3/8” SD Int. Head inc., batteries not inc.*
10551	3000-Series Exacta 75	75 ft.lb, 101.5 Nm cap., 3/8” SD Int. Head inc., batteries not inc.*
10552	3000-Series Exacta 150	150 ft.lb, 203.3 Nm cap., 1/2” SD Int. Head inc., batteries not inc.*
10553	3000-Series Exacta 250	250 ft.lb, 338.9 Nm cap., 1/2” Ratcheting Sq. Dr., batteries not inc.*
10554	3000-Series Exacta 600	600 ft.lb, 813 Nm cap., 3/4” Ratcheting Sq. Dr., batteries not inc.*
10555	3000-Series Exacta 400	400 ft.lb, 543 Nm cap., Dovetail, batteries not inc.* **
21259*	Charger & 4 AA NiMH	4 AA NiMH 2200 mAh batteries & charger, NAFTA only
816261	4 AA NiMH Batteries	2500 mAh NiMH batteries, spare, NAFTA only

** Wrenches calibrated for use with heads having 3 7/8” Common Centerline.

Additional Technical Information

Print	Model Capacity	Lever Length	Overall Length	Weight
10550	25 ft. lbs.	12.5” / 317 mm	16.1” / 409 mm	2.8 lbs. / 1.27 kg
10551	75 ft. lbs.	15.8” / 401mm	19.4” / 493 mm	3.0 lbs. / 1.36 kg
10552	150 ft. lbs.	17.8” / 452 mm	21.5” / 546 mm	3.1 lbs. / 1.40 kg
10553	250 ft. lbs.	21.0” / 533 mm	25.2” / 640 mm	4.1 lbs. / 1.86 kg
10554	400 ft. lbs.	36.5” / 927.1 mm	35.9” / 911.8 mm	7.7 lbs. / 3.49 kg
10555	600 ft. lbs.	55.1” / 1399 mm	59.7” / 1516 mm	13.0 lbs. / 5.90 kg
