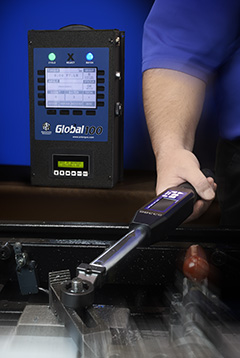

Global 100 Torque Controller

Applications

Global 100 controllers work with up to 20 PST 1000-equipped ported pulse tools, 1100-Series Exacta® 2 digital torque wrenches, 2.4 GHz preset torque wrenches or select battery-powered tools - in any combination.

The Global 100 manages up to 100 parameters and organizes them into up to 100 jobs. Jobs can be a VIN number, part number or some proprietary system based on your needs.

Features and Specifications

• Maximum number of torque tools controlled in any combination: 20
• Two-Way Communication with 1100-Series Exacta® 2 Digital Torque Wrenches

• Two-Way Communication with PST 1000 Pressure Sensor/Transceiver for
  ported pulse tools

• Two-Way Communication with 2.4 GHz Wireless Preset Torque Wrenches

• Manages & communicates variable torque data

• Manages & communicates attribute torque data

• Downloads assembly specifications to tools

• Performs task sequencing
• Accepts task sequencing from external commands
• Display shows current tool and current tightening status
• LED’s for Cycle Accept, Cycle Reject and Batch Accept
• No 10-Pin I/O port for 24 VDC signals & relays
• Beeper augments visual communication
• Soft key programming on front panel
• 2.4 GHz RF communication distance up to 50’ (16m)
• 9-pin serial connector for serial printer
• 1 tool assigned per parameter
• Only tool assigned to current parameter is active
• 100 jobs organized
• 100 parameters organized
• 30 parameters per job
• Bar code capable
• Communicates is Open Protocol via Ethernet
• 2400 stored historical torque events

Third-party software that performs data logging and facilitates programming tasks for Global 8 units can be found and downloaded here.

Specification and Ordering Information

Part No.	Model	Description
10495	Global 100	Global 100 Torque Controller
