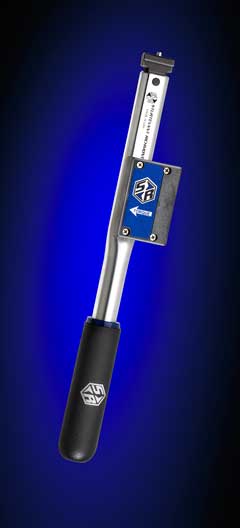

2.4 GHz Preset Clicker-Type Torque Wrenches - SLTC 2.4
Application Information
S/R 2.4 GHz Preset Clicker-Type Torque Wrenches incorporate the accuracy, repeatability and durability of our preset torque wrench lines that have made them a staple of assembly lines in many industries. The addition of the radio adds rapid operator and controller communication capability so they can be readily incorporated into your error-proofing approach.
- Full compatibility with Global 8, Global 8-Ethernet, PTV-FM 2.4 GHz, TCV-FM 2.4 GHz,, and TCV-Ethernet.
- Accuracy of +/- 4% of preset value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789.
- Excellent audible/tactile impulse when preset torque is achieved.
- Monitors time in the “clicked” position to proved “OK/BAD” quality attribute data with every use of the tool.
- Too little time in the clicked position means the tool was likely “jerked”, resulting in either over- or under-torque.
- Correct time in the clicked position means the tool was used properly to transmit the preset torque correctly to the fastener.
- Too much time in the clicked position means the tool was likely pulled past the click and excess torque was applied to the fastener.
- Provides immediate on-tool feedback on quality of each use through red/green LED. Green is good!
- Provides immediate radio communication of quality of each use to the controller, which also displays the result.
- Dovetail models and slender body design provide superior access in constrained-access applications.
- Dovetail models work with over 100 S/R Interchangeable Heads.
- Tamper-resistant design discourages unauthorized torque setting changes.
- Light weight and new Cushion Grip provide superior ergonomics.
Ordering Information
| Part No. | Model | Description |
|---|---|---|
| 810311 | SLTCFM24 50 I | WIreless Preset Switch Wrench, 2.4 GHz, 50 in. lbs./6 Nm cap., dovetail |
| 810312 | SLTCFM24 150 I | WIreless Preset Switch Wrench, 2.4 GHz, 150 in. lbs./17 Nm cap., dovetail |
| 810313 | SLTCFM24 300 I | WIreless Preset Switch Wrench, 2.4 GHz, 300 in. lbs./34 Nm cap., dovetail |
| 810310 | SLTCFM24 300 I OHT | WIreless Preset Switch Wrench, 2.4 GHz, 300 in. lbs./34 Nm cap., dovetail (Length same as 810312) |
| 810314 | SLTCFM24 750 I | WIreless Preset Switch Wrench, 2.4 GHz, 750 in. lbs./85 Nm cap., dovetail |
| 810315 | SLTCFM24 1800 I | WIreless Preset Switch Wrench, 2.4 GHz, 1800 in. lbs./204 Nm cap., dovetail |
| 810305 | SLTCFM24 1800 I Ergo | WIreless Preset Switch Wrench, 2.4 GHz, 1800 in. lbs./204 Nm cap., dovetail (6” longer than 810315) |
| 810316 | SLTCFM24 3000 I | WIreless Preset Switch Wrench, 2.4 GHz, 3000 in. lbs./339 Nm cap., 1/2” Ratcheting S. D. |
| 810317 | SLTCFM24 3600 I | WIreless Preset Switch Wrench, 2.4 GHz, 3600 in. lbs./408 Nm cap., dovetail |
| 810318 | SLTCFM24 4800 I | WIreless Preset Switch Wrench, 2.4 GHz, 4800 in. lbs./542 Nm cap., dovetail |
| 810319 | SLTCFM24 7200 I | WIreless Preset Switch Wrench, 2.4 GHz, 7200 in. lbs./813 Nm cap., 3/4” Ratcheting S.D. |
