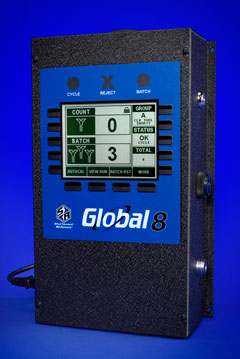

Global 8 Torque Tool Controller
Applications
Global 8 controllers work with up to eight PST 1000-equipped ported pulse tools, 1100-Series Exacta® 2 digital torque wrenches, 2.4 GHz preset torque wrenches or select battery-powered tools - in any combination. When multiple tools of multiple types, or many tools of the same type must be used at a single cell or station, one of the Global 8 family is likely the optimum controller for that location.
Specification and Ordering Information
| Feature | Global 8 |
|---|---|
| Maximum number of torque tools controlled in any combination | 8 |
| Integrates 1100-Series Exacta® 2 Digital Torque Wrenches | Yes |
| Integrates PST 1000 Pressure Sensor/Transceiver for ported pulse tools |
Yes |
| Integrates 2.4 GHz Wireless Preset Torque Wrenches | Yes |
| Manages & communicates variable torque data | Yes |
| Manages & communicates attribute torque data | Yes |
| Downloads specifications to tools | Yes |
| Performs task sequencing | Yes |
| Accepts task sequencing from external commands | Yes |
| Display shows current tool and current tightening status | Yes |
| LED’s for Cycle Accept, Cycle Reject and Batch Accept | Yes |
| 10-Pin I/O port for 24 VDC signals & relays | Yes |
| Beeper augments visual communication | Yes |
| Soft key programming on front panel | Yes |
| 2.4 GHz RF communication distance up to 50’ (16m) | Yes |
| USB connector for computer communications | No |
| 9-pin serial connector for serial printer | No |
Ordering Information
| Part No. | Model | Description |
|---|---|---|
| 10479 | Global 8 | Global 8 Controller |
Third-party software that performs data logging and facilitates programming tasks for Global 8 units can be found and downloaded here.
