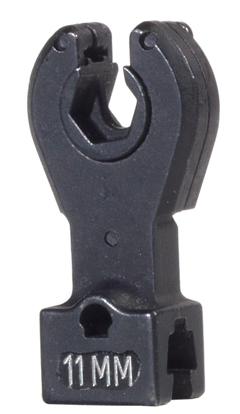

Ratcheting Flare Nut - RFN Series

Applications

• Ideal for use on hydraulic and pneumatic fittings.
• Single-direction internal ratchet.

Ordering Information and Specifications

Dimensions refer to illustration to right.

1.4375” Common Centerline - SI
Part No.	Model	Size (mm)	Max. Torque (in.lbs.)	A (in.)	B (in.)	C (in.)	D (in.)	E (in.)
819086	RFN - 10 mm	10	221	2.0	0.3	0.6	0.9	0.7
819087	RFN - 11 mm	11	221	2.0	0.3	0.6	0.9	0.7
